2×2 OLED Transparent Screen Splicing Project Case

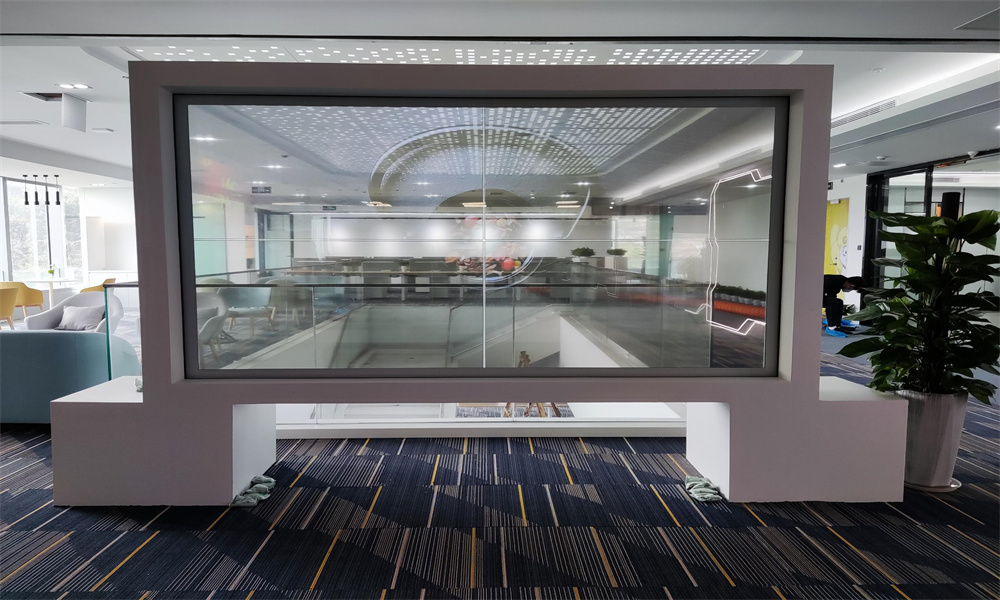

To create an immersive interactive experience, the high-end exhibition hall adopts 4 55 inch OLED transparent screens provided by NEXOLED for 2 × 2 horizontal splicing, combining transparent display technology with creative content to achieve the integration of technology and art.

Core products and technical specifications

Screen specifications

Model: LG 55 inch OLED transparent screen

Resolution: 1920 × 1080 (Full HD)

Transmittance: about 40% (self luminous characteristic, no need for backlight module)

Size: Single screen display area 1209.6 × 680.4mm, total size after splicing is approximately 2419.2mm (width) × 1360.8mm (height)

Weight: Single screen 3.2kg, overall approximately 12.8kg (excluding bracket)

Interface: DVI signal input, supports 70Hz scanning frequency

control system

Splicing control board: The main control chip is responsible for signal distribution and resolution adaptation, ensuring seamless synchronization of 4 screens.

Signal transmission: DVI cable is used to connect the signal source (such as PC or media player), supporting high-definition video playback.
